Pillow Plates

PROCESS ENGINEERS AND ASSOCIATES has a unique knowledge in manufacturing pillow plates and we have one of the best equipped manufacture units for this exact purpose.

The manufacturing of pillow plates is our prime core competence. This means, that through the years we have collected a distinctive knowledge, a knowledge that has enabled us to combine pillow plates with our customers' different request for heat exchange. We combine our pillow plates with a large range of products, such as heat exchangers, filter housings, tanks and many other process units.

What is Pillow Plate?

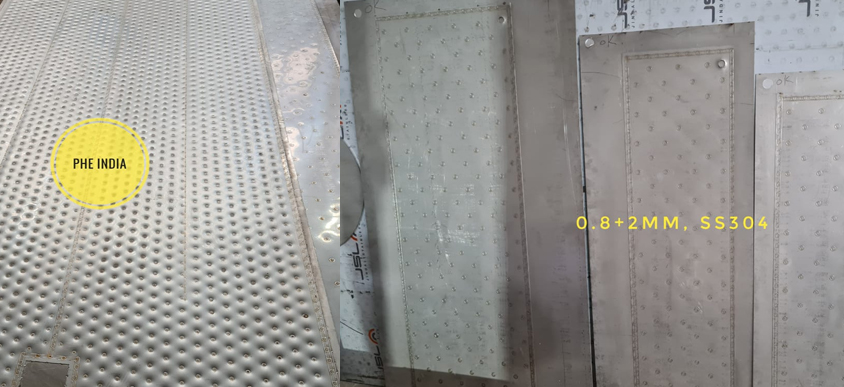

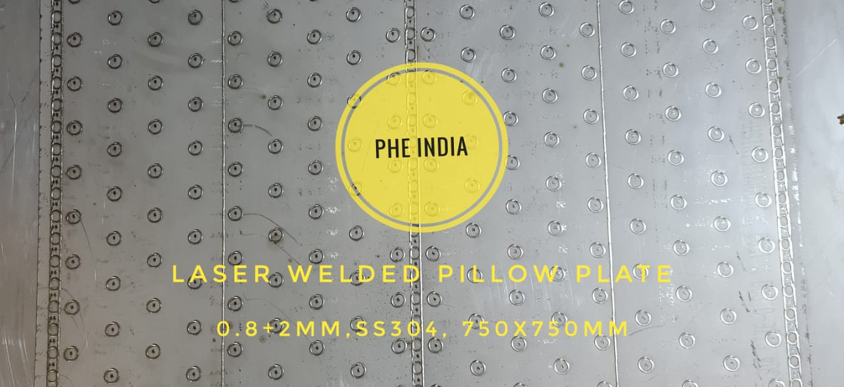

A Pillow Plate consists of two plates which are spot welded together. The plates are sealed with weldings along the outlines of the plates. The plate is then expanded until the preferred channel height is achieved. The channel height is the maximum space between the two plates.

While the thickness and the spot pattern is determined by the design pressure. The channel height and the space between the pillow plates in a heat exchanger is determined by flow and allowed drop in pressure.


Field Of Applications


Pillow Plates can be used for heat recovery and similer processes in many industrys. Such of industrys could be:

  • Food processing industry.
  • Chemical Industries
  • Wood processing industry.
  • Paper processing industry.
  • And similar industrys that have same processes as the above-mentioned.
